SPECIFICATIONS

Bead Separation Force: 13.8 tons

Brand Name: NoEnName_Null

Color: Yellow

Effective length of shoveling tire: 2.34''

Hign-concerned Chemical: None

Material: Cast Iron

Max Pressure: 10,000psi (700bar)

Model Number: YYBTQ000000000001V0

Origin: Mainland China

Power Source: Hydraulic

Pressure Range: 40-150psi (2.8 to 10.3Bar)

Surface Finish: Baking Finish

Type: Power Tool Parts

Vehicle Type: ATV,Heavy Duty/Commercial,Motorcycle,Passenger Vehicle

Working range: up to 5''

Product Description

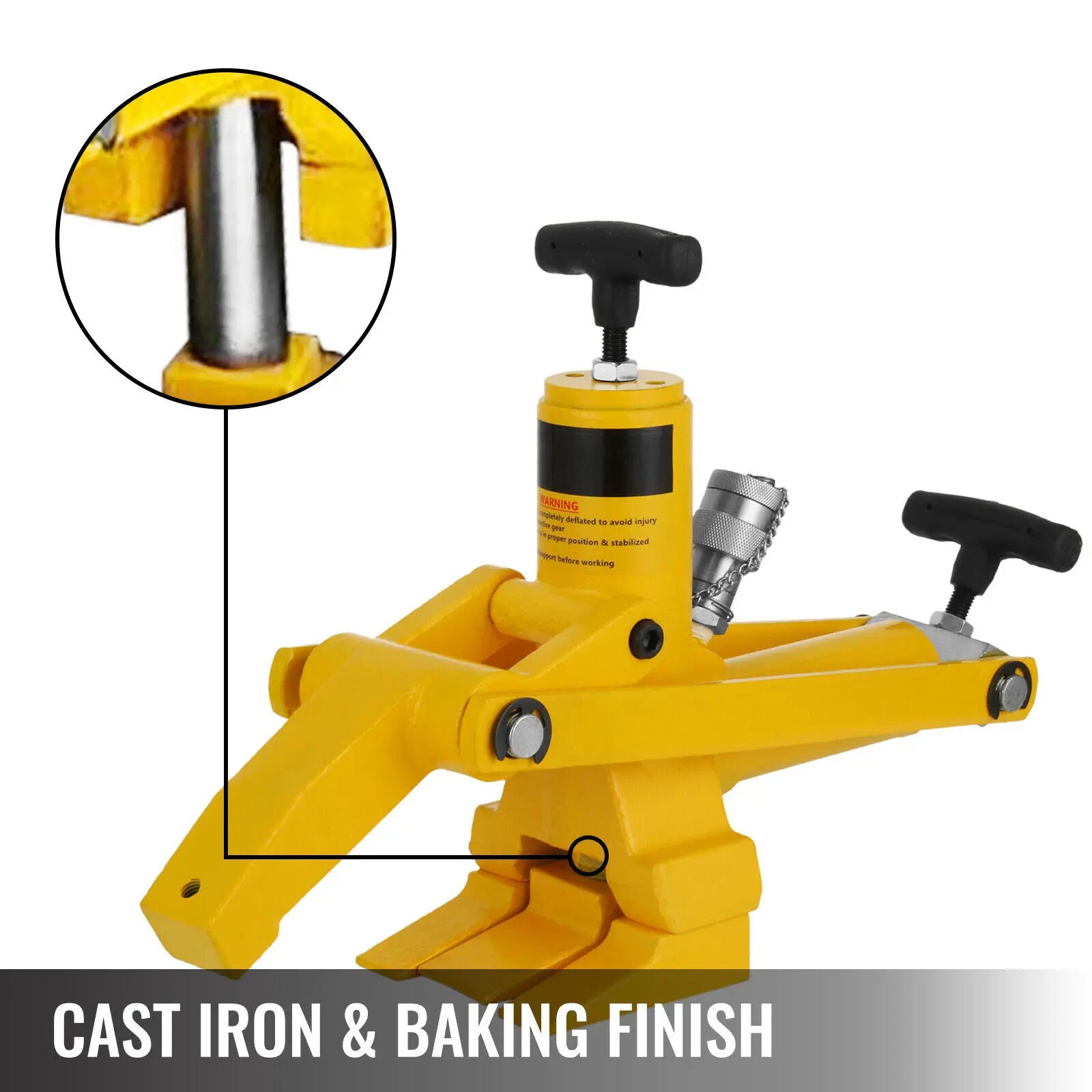

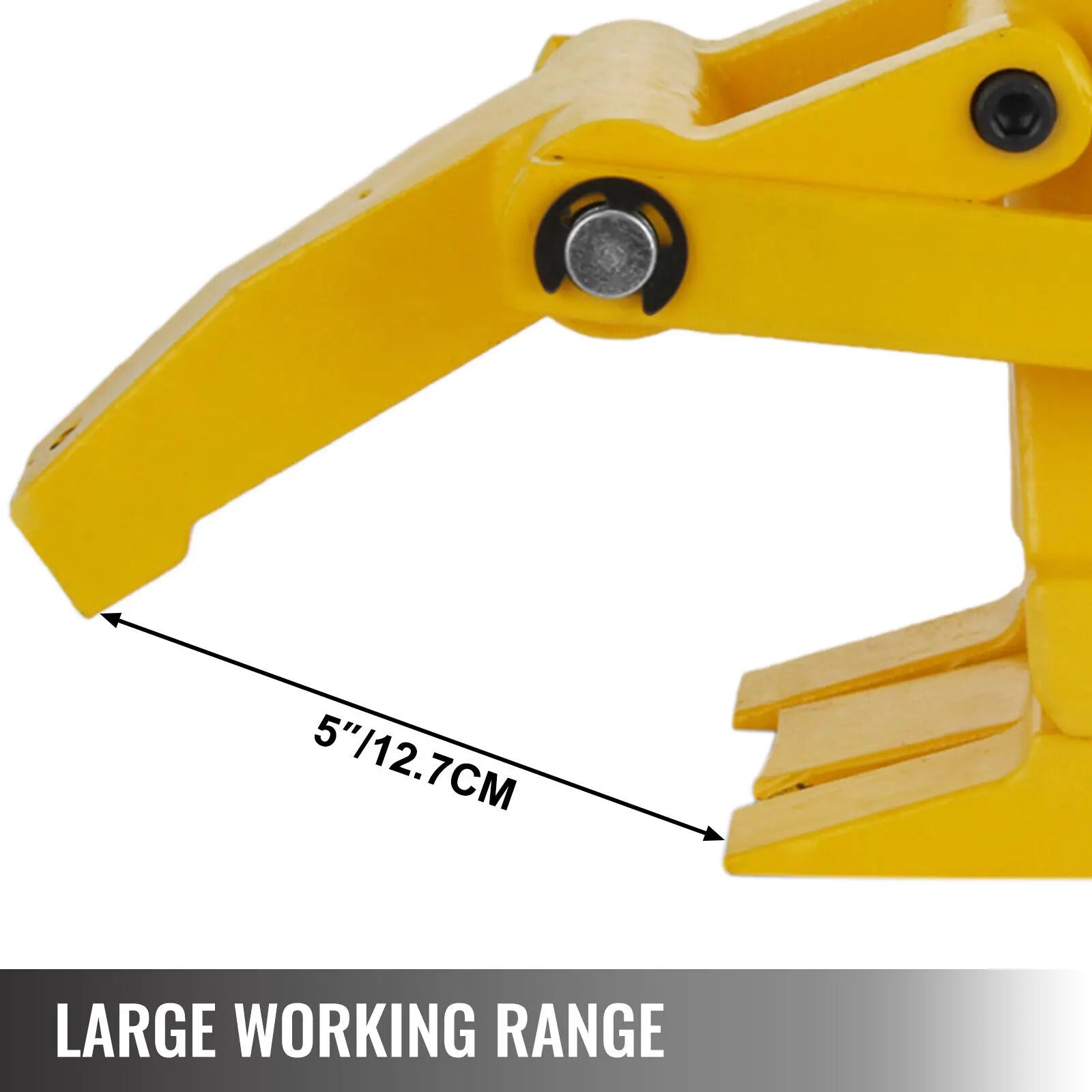

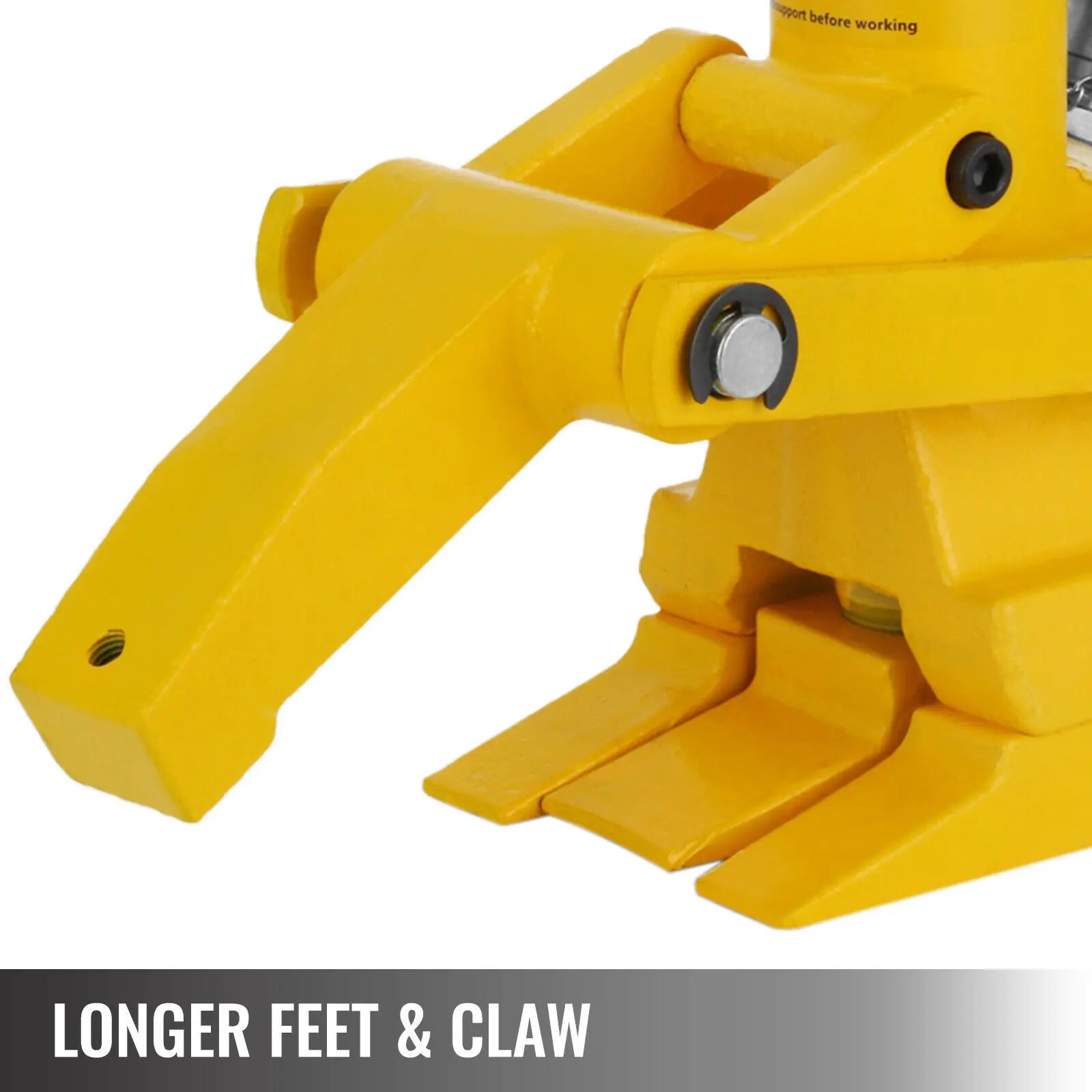

Cast Iron & Baking Finish Cast iron material combined with precision machining components, solid and durable; the baking finish has strong corrosion resistance.	Large Working Range The working range is up to 5" (12.7 cm), which saves some trouble of changing the hook, making the tire unloading speed faster.	Longer Feet & Claw The longer and larger feet and claw are able to grasp the tire firmly, uneasy to slip off, in case that the tire edge is too large to hook.

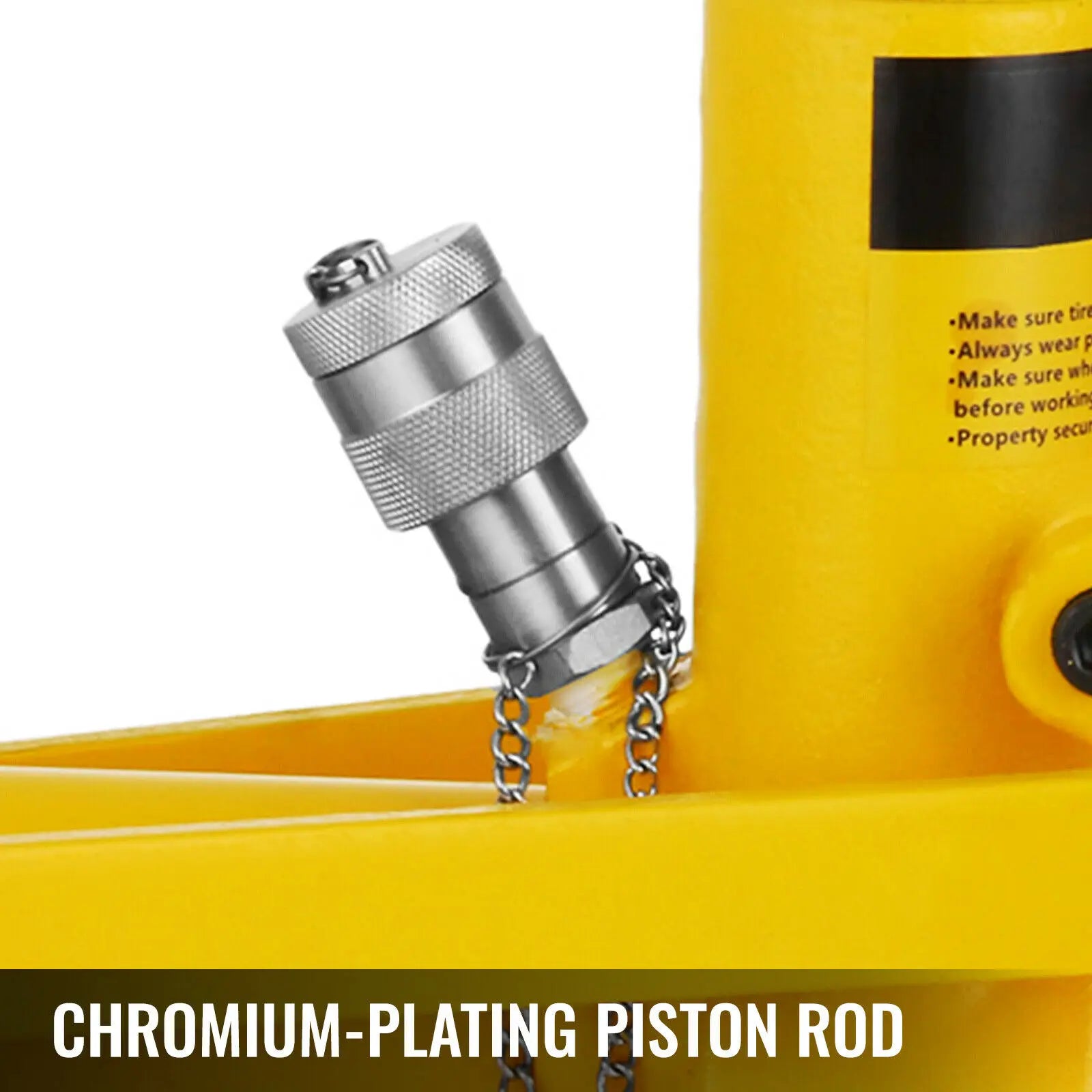

Chromium-Plating Piston Rod The piston rod is designed with fine polishing and chromium-plating processing, which has good abrasiveness and anti-causticity.	Self-Retracting Design The hydro-cylinder adopts the self-retracting design under the spring force to simplify the operation steps and improve efficiency.	Wide Application It is an ideal choice for breaking beads on commercial and agricultural tires, including single, two and three piece truck tires and rims.

Specifications

• Type: Hydraulic

• Working Range: Up to 5" (12.7 cm)

• Pressure Range: 40-150 psi (2.8-10.3 bar)

• Max Pressure: 10,000 psi (700 bar)

• Bead Separation Force: 13.8 tons

• Effective Length of Shoveling Tire: 2.34" (5.9 cm)

Package Content

• 1 x Hydraulic Bead Breaker

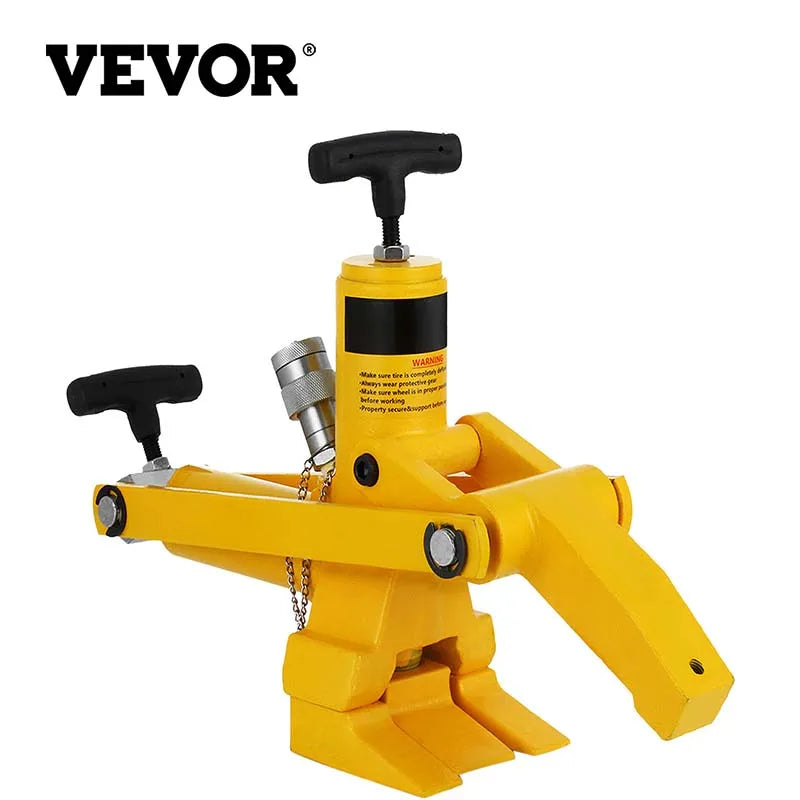

Hydraulic Bead Breaker

This bead breaker tool is made of the cast iron body and baking finish surface, as well as precision machining components, sturdy and durable. With a large working range, up to 5" (12.7 cm), and long feet and claw, the car tire bead breaker can grasp the tire firmly and save the trouble of changing the hook. This tire bead breaker tool is widely used for breaking beads on single, two and three piece tires and rims, also some new style wheels.

• Premium Quality

• Large Working Range

• Chromium-Plating Piston Rod

• Self-Retracting Design
