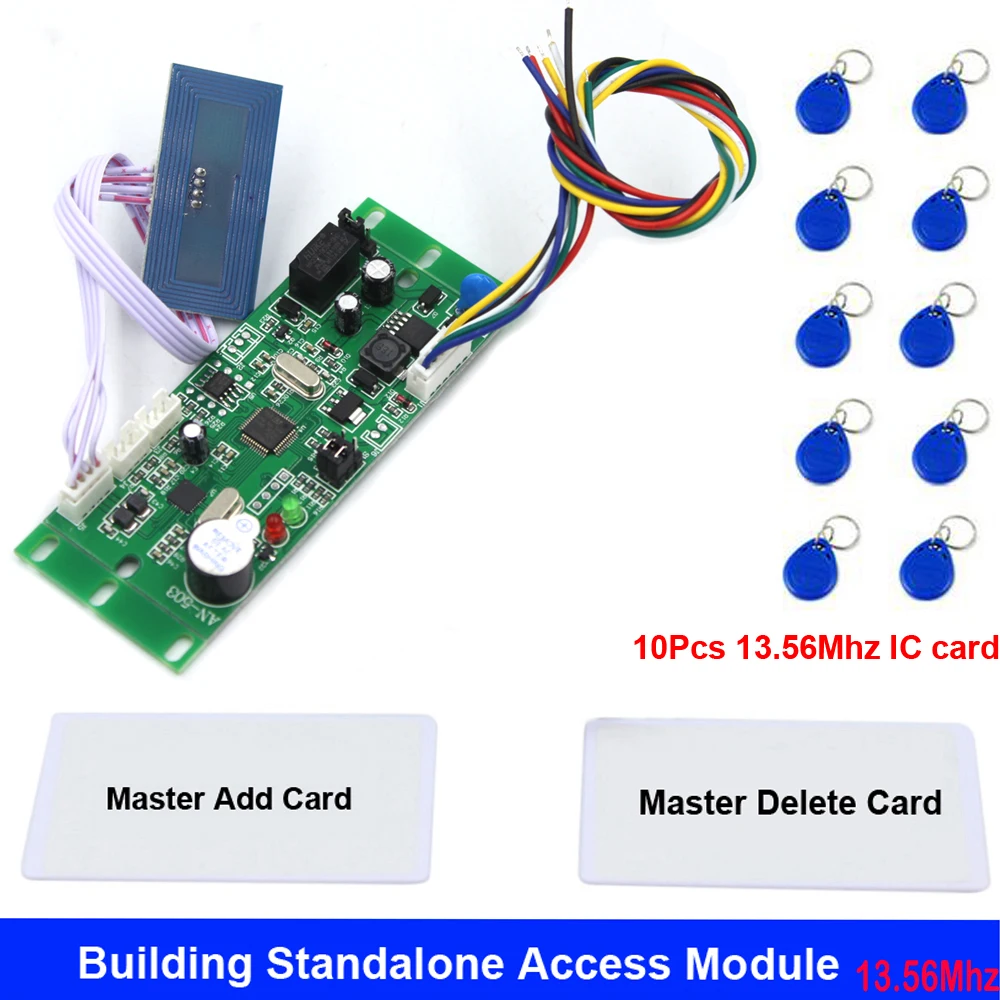

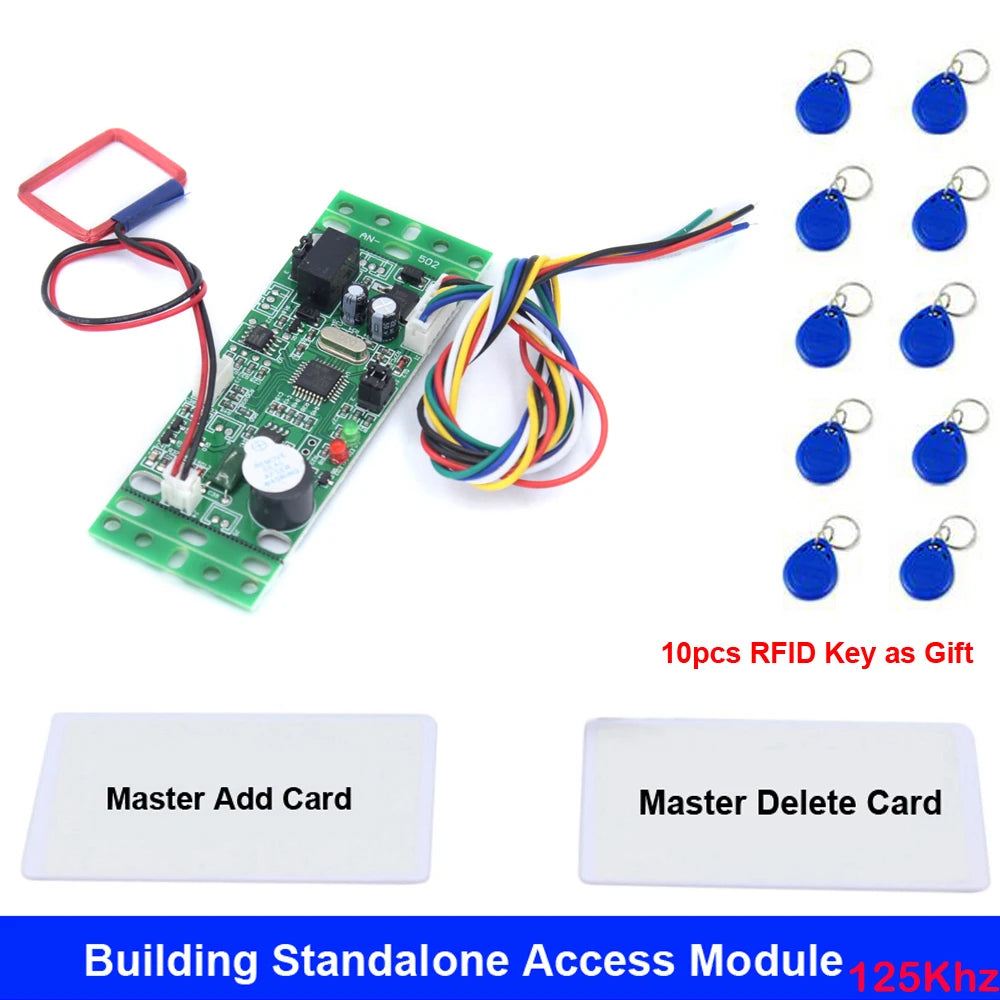

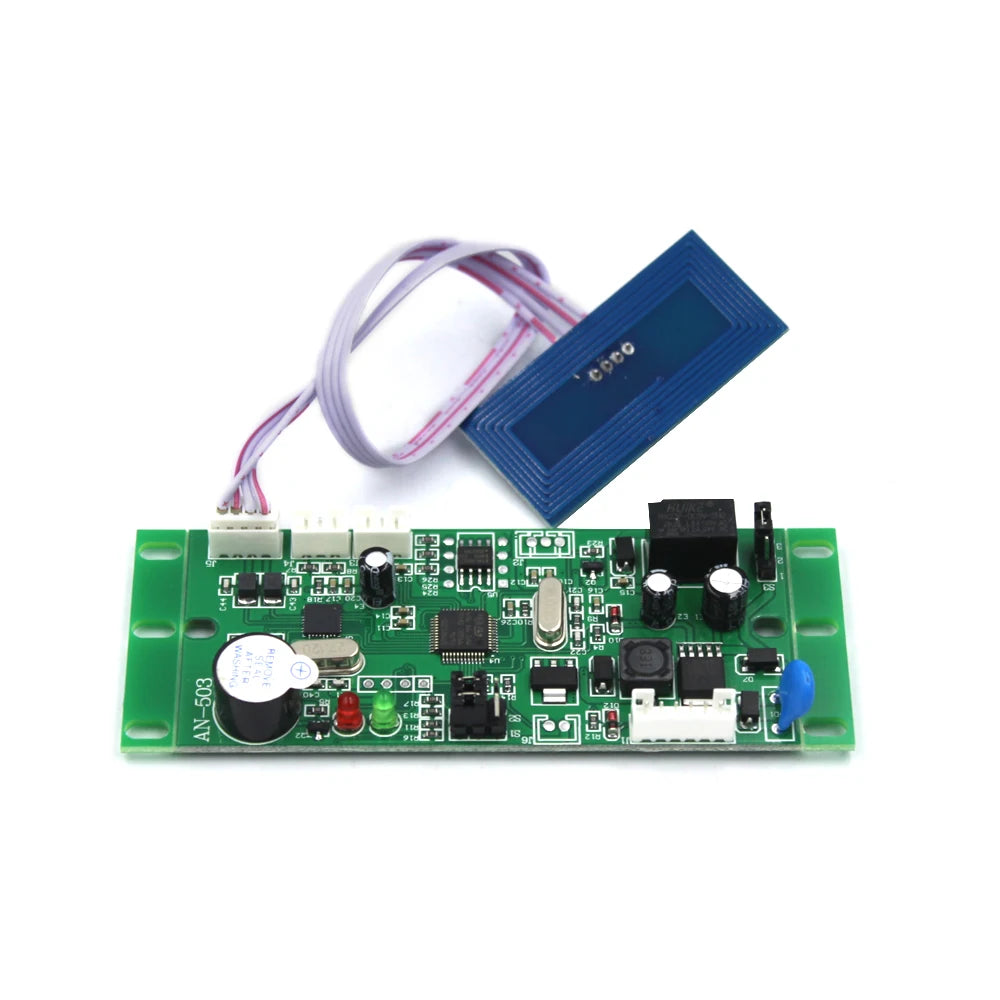

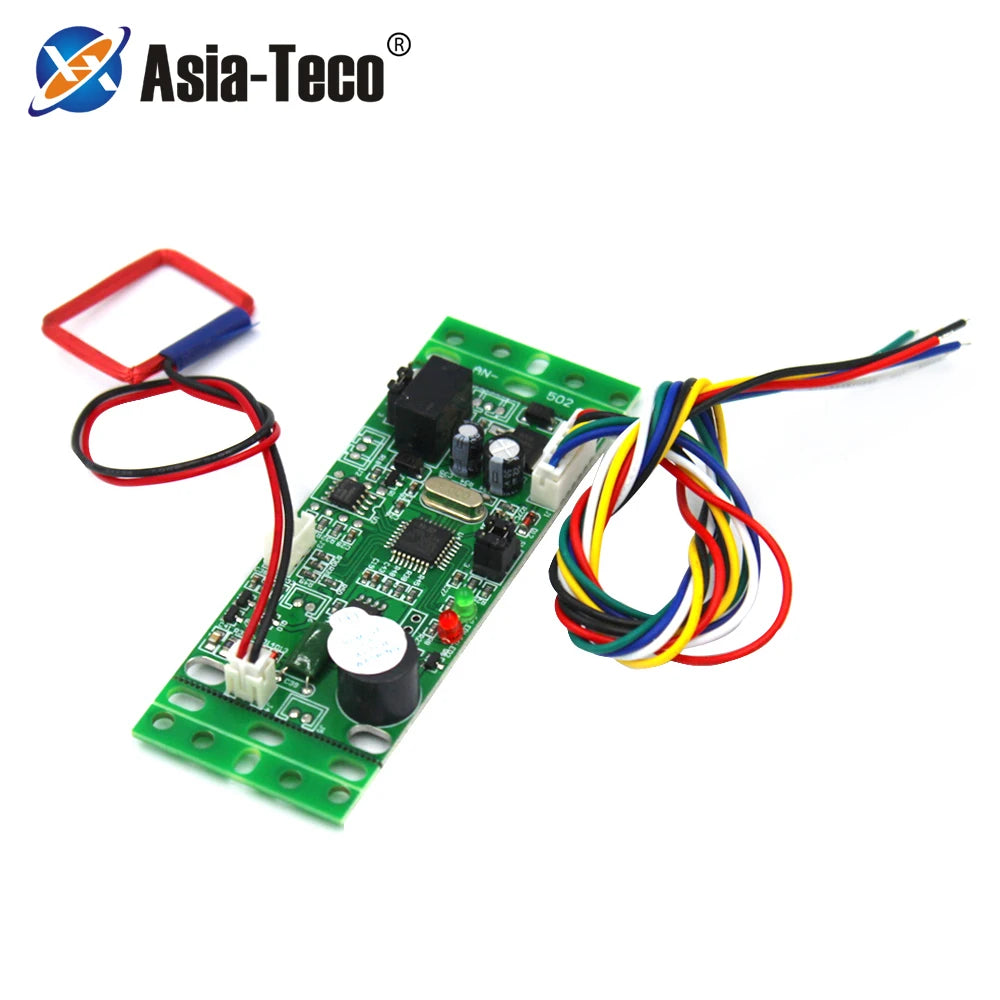

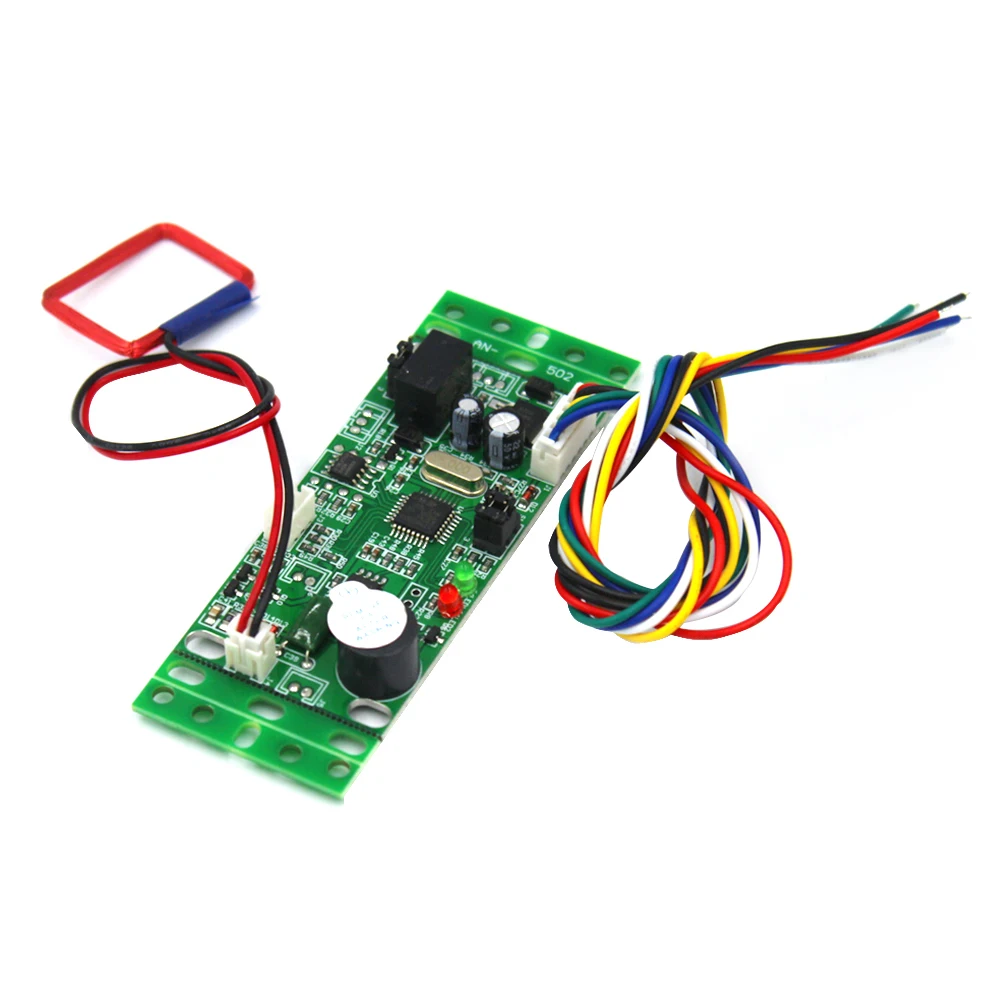

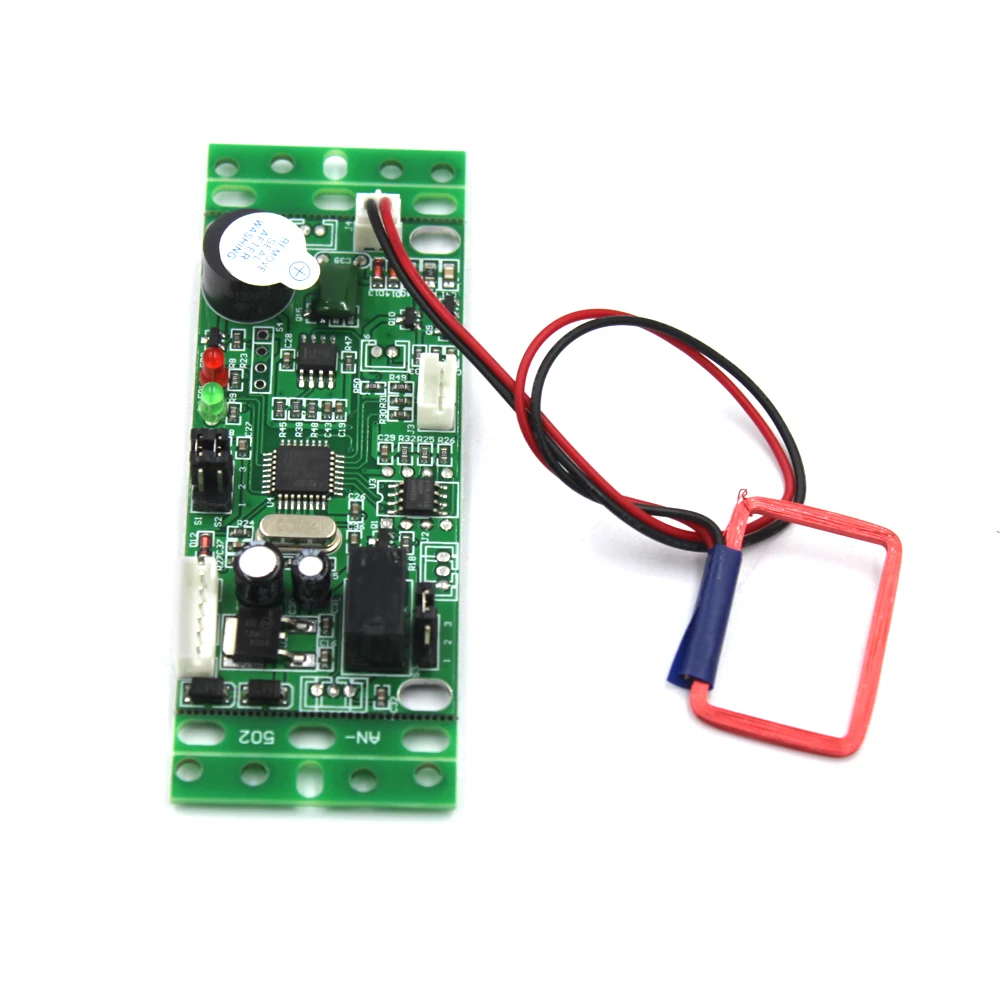

Proximity 125Khz 13.56Mhz RFID Access Control module 13.56MHZ IC Module Embedded Access System Controller Board

Technical parameters:

1.Working voltage DC12V
2. working current < 100 mA
3. user capacity: 15000
4.Heavy volume 80 g
5.Read the card types: 13.56Mhz IC card or 125Khz EM/ID card
6.Ambient temperature - 20 to 60 Degree
7.Card read distance: 1-10cm

Set the card:
Step 1: power off, connect S1 jumper cap 2, 3, side, back to electricity, three nights after the green light flash.
Step 2: brush two consecutive blank card (the first one to increase the card, the second delete card), the red light flashing, continuous short at this time.
Step 3: power off, reconnect the jumper cap 1, 2, and finally to electricity, card increase.

Add or Del users:
Add user: in standby mode, brush "add card", then brush to add user card in a row, then brush "add card" to exit
Delete users: in standby mode, brush "Del card", then brush to remove user card in a row, then brush "Del card" to exit
Delete all user: in standby mode, brush "Del card", then brush "add card", then brush "Del card" to exit.
