SPECIFICATIONS

Brand Name: smtkey

Choice: yes

Connectivity: Closed System/CCTV Wired

High Definition: 4.0 Megapixels

Hign-concerned Chemical: None

Installation: Normal

Internal Storage: None

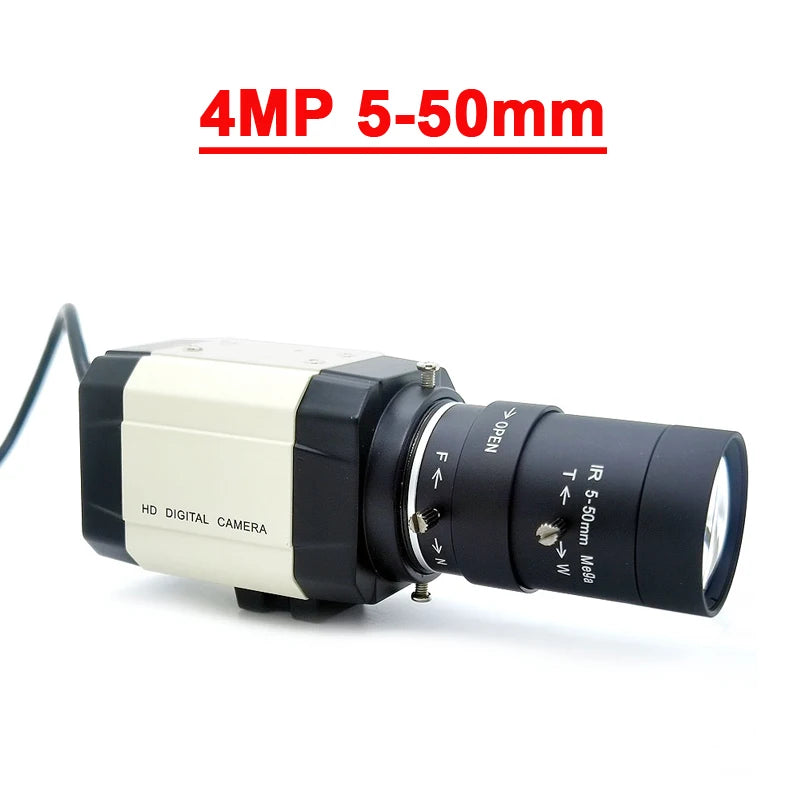

Lens (mm): 5-50mm

Lens Quantity: Single Lens

Megapixels: 4MP

Model Number: SU200-MB

Origin: Mainland China

Power Supply: Normal

Power Supply(V): 5V

Scene: Indoor

Style: Mini Camera

Supported Operating Systems: Windows XP,Windows 7,Windows 10

Video Compression Format: MJPEG

Zoom: 4X

Zoom type: Optical zoom

semi_Choice: yes

Feature:

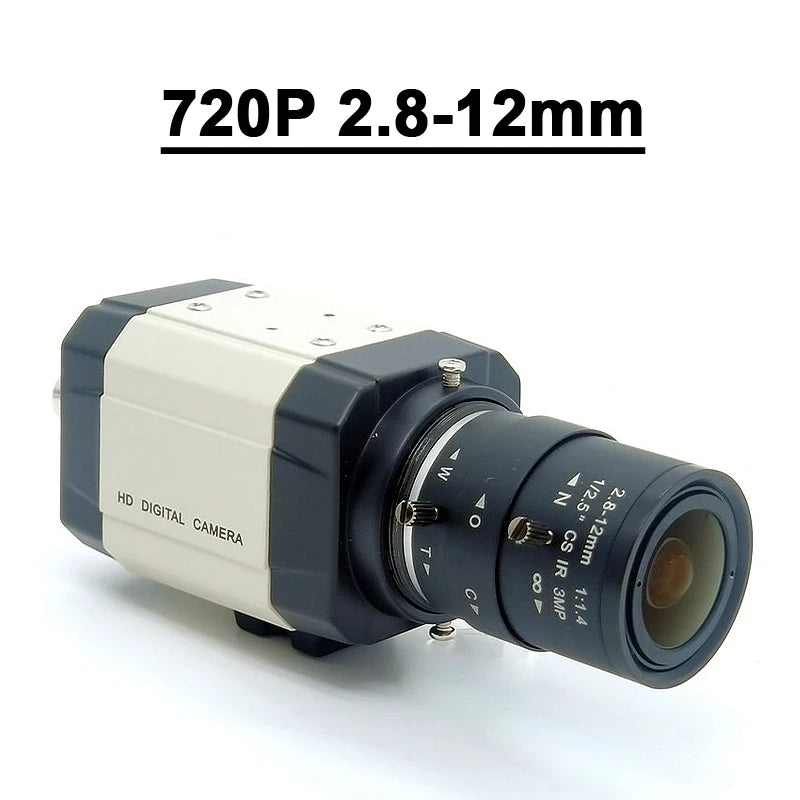

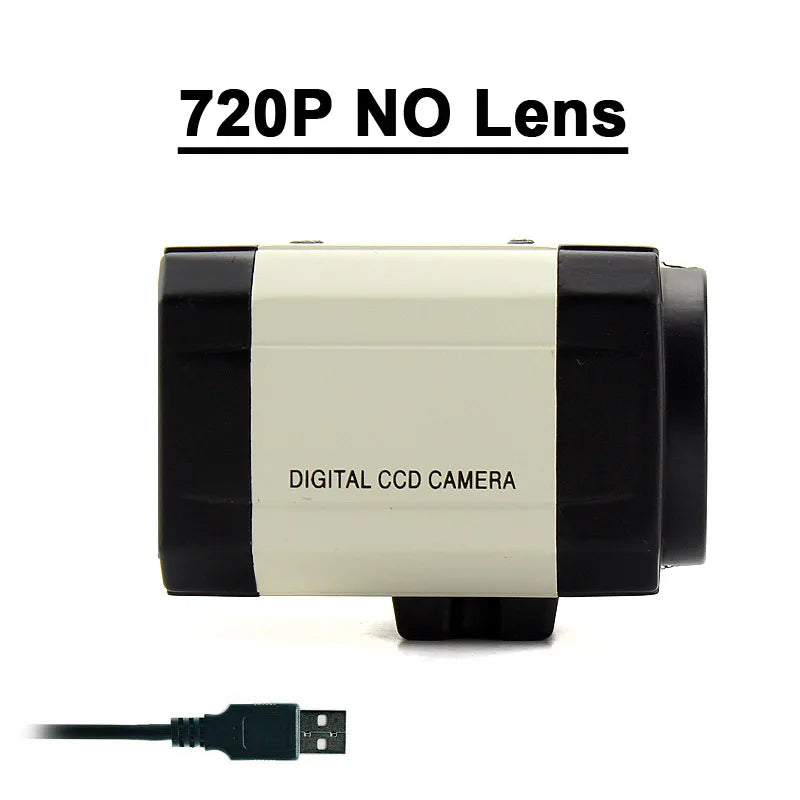

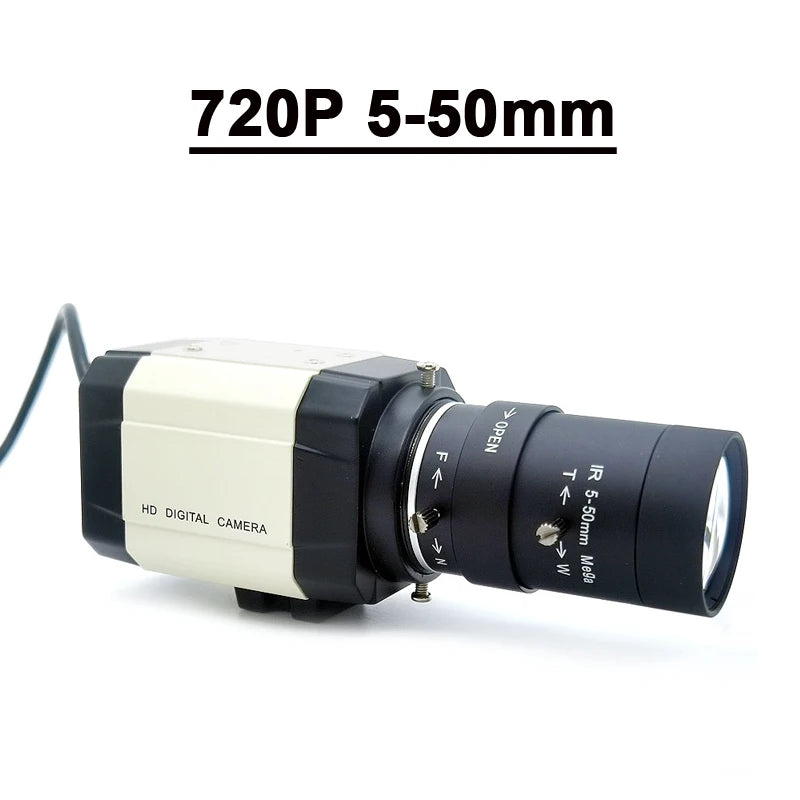

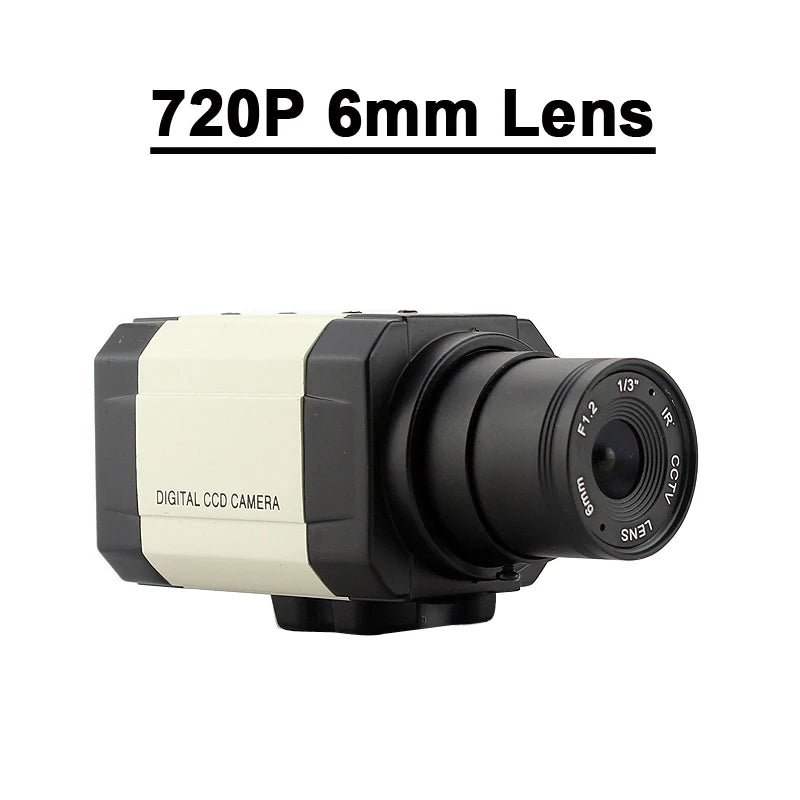

1.High Speed 4MP HD USB Camera (option 720P USB 1280*720)

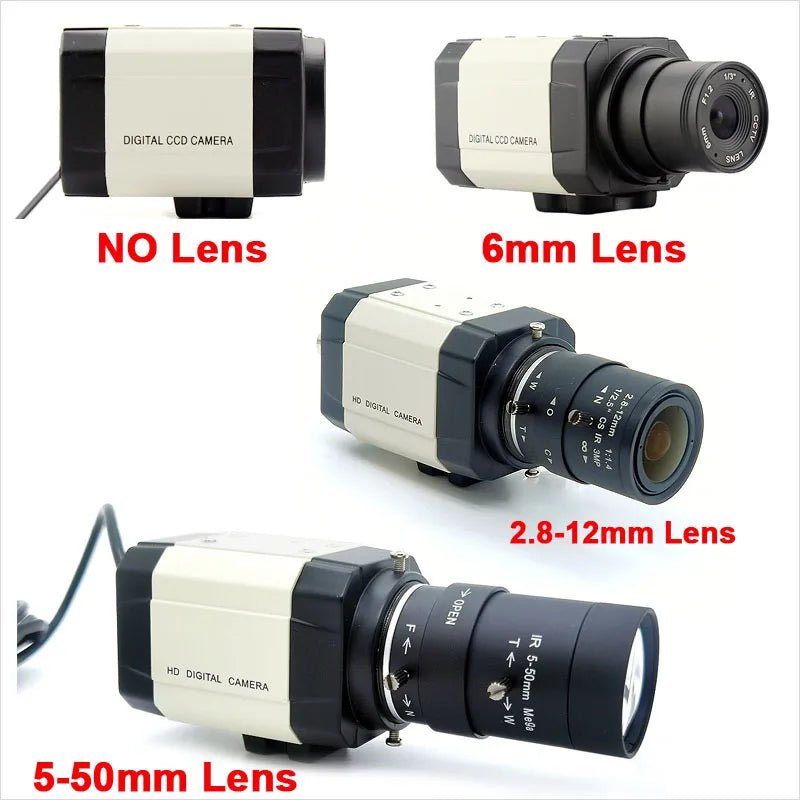

2.Fixed Lens or Varifocal Zoom Lens

3.High frame rate MJPG– deliver 30 fps in 2560x1440 resolution, 30 fps in 1920X1080 resolution.

4.CMOS F5253 Sensor for high quality image and low power consumption.

5.High speed USB 2.0 interface for high resolution PC camera interface.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

8.Super small outline and thin profile for embedded applications.

9.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

10.Camera With UVC, Drive-free.

Specification:

Sensor：1/2.9'' CMOS 8852+2083

Pixel：4MP, 4 Megapixel ,2560(H)x1440 （V）Pixels

Max resolution: 2560x1440

Output image format: MJPEG

USB protocol: USB2.0 HS/FS

Support free drive protocol: USB Video Class (UVC)1.1

Audio: 4MP With Microphone （720P No Micphone）

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Frame rate:

2560(H)x1440 （V）Pixels MJPEG 30fps

1920(H)x1080 （V） Pixels MJPEG 30fps

1280(H)x 720 （V） Pixels MJPEG 30fps YUV2 30fps

640(H)x480 （V） Pixels MJPEG 30fps YUV2 30fps

Adjustable parameters: brightness, contrast, color saturation, Gamma, WB

Night Vison: no

Minimum illumination: 0.1(F1.2，AGC ON)

View Angle : Wide angle

Working voltage: DC 5V

Working current: 150mA

Working temperature: -10～60℃

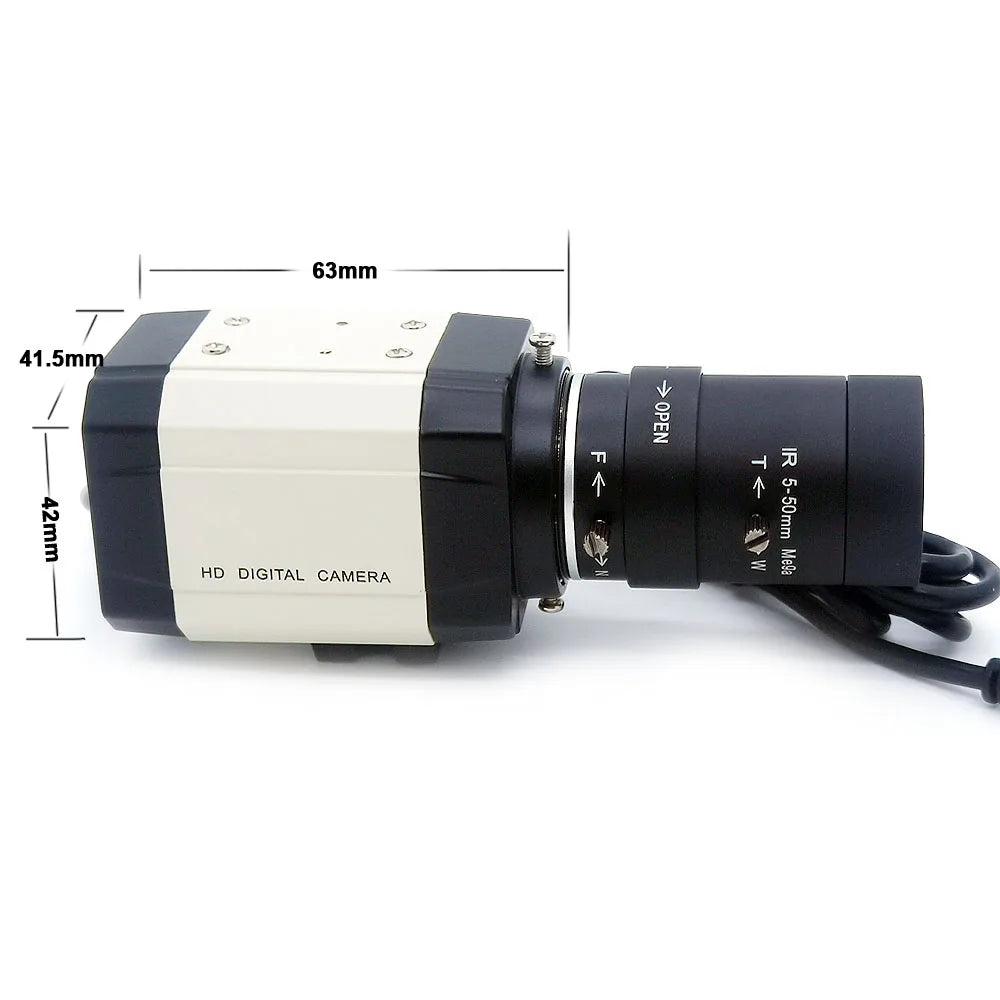

Board size/weight: 32X32mm

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
